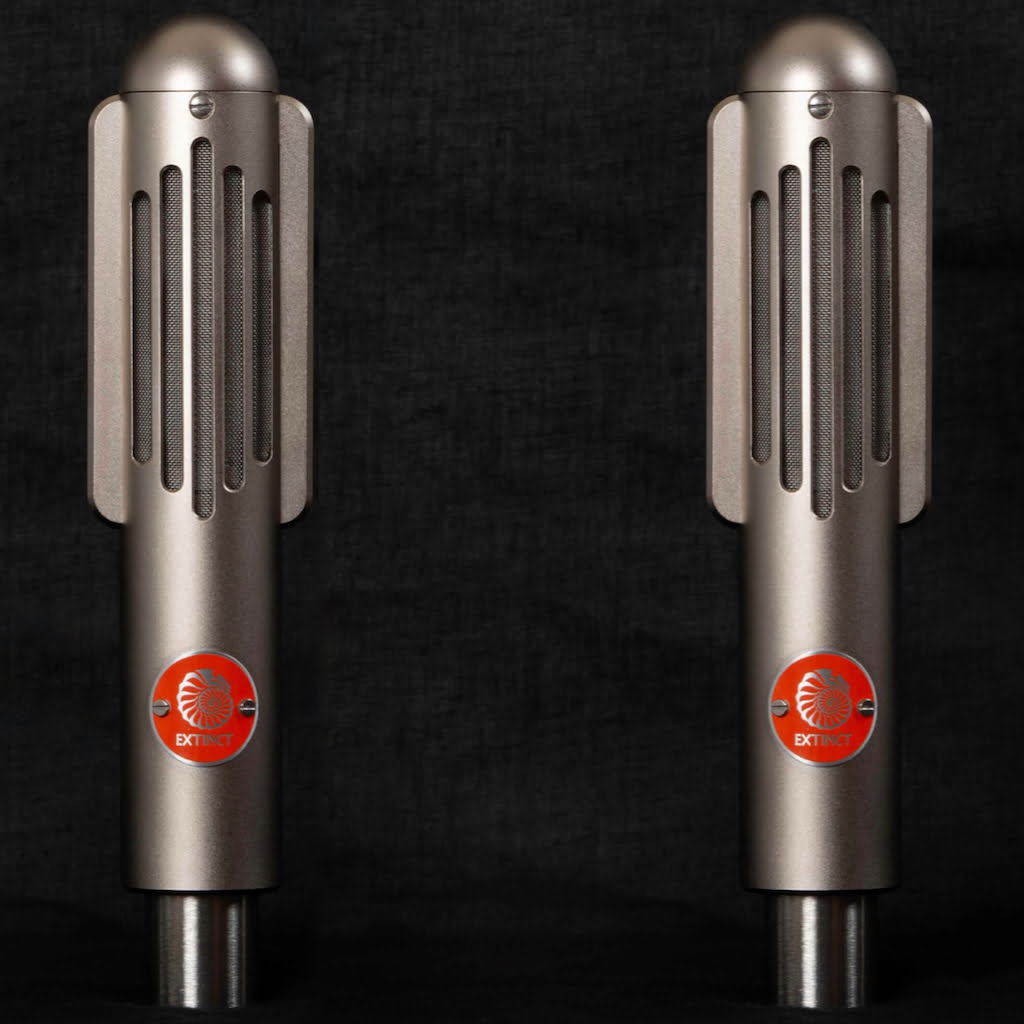

Extinct Audio BM9 Studio Ribbon Microphones – Matched Stereo Pair

$1,596.93 ($1,330.78+VAT)

“My favourite ribbon mic of all time.” Martin Mitchell

“Seriously vibey and also beautifully detailed”

Supplied with hard-tail mounts and box.

Description

This listing is for 2 x BM9 ribbon microphones. These microphones are tested and paired at our workshop, giving you a perfectly matched pair.

Designed to be equally at home in front of a guitar amp or an orchestra, the Extinct Audio BM9 brings you the best combination of vintage tone and modern utility. The BM9 is a versatile, low noise ribbon microphone, with strong output, rich bass and clear, detailed top end.

The BM9 is made entirely in the UK*. Metal parts are machined and plated in England, and the transformers and assembly are performed at our facility in York.

Quality control is paramount with ribbon microphones, which is why every ribbon is fitted and tuned by Dr. Stewart Tavener, an engineer who has worked on thousands of vintage microphones.

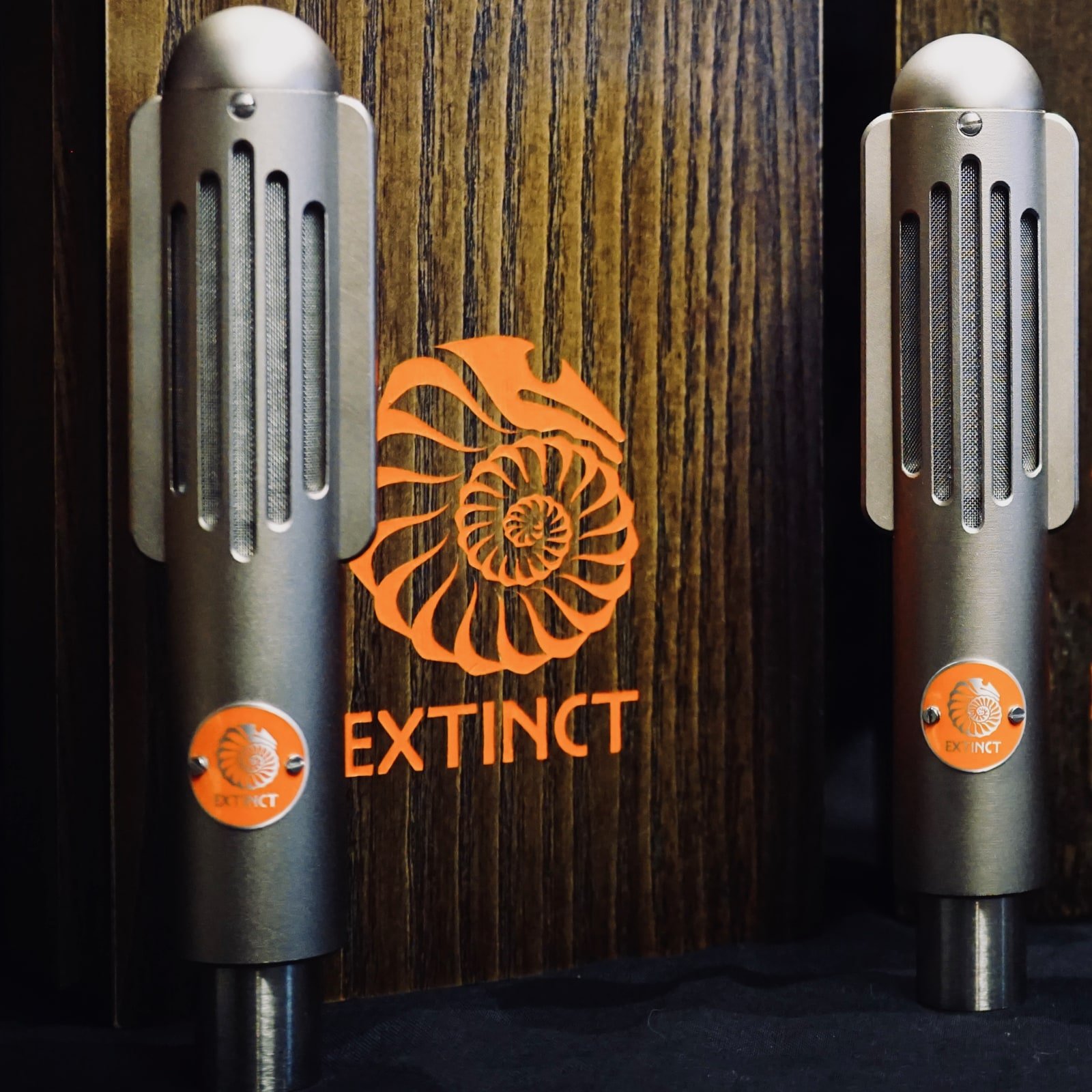

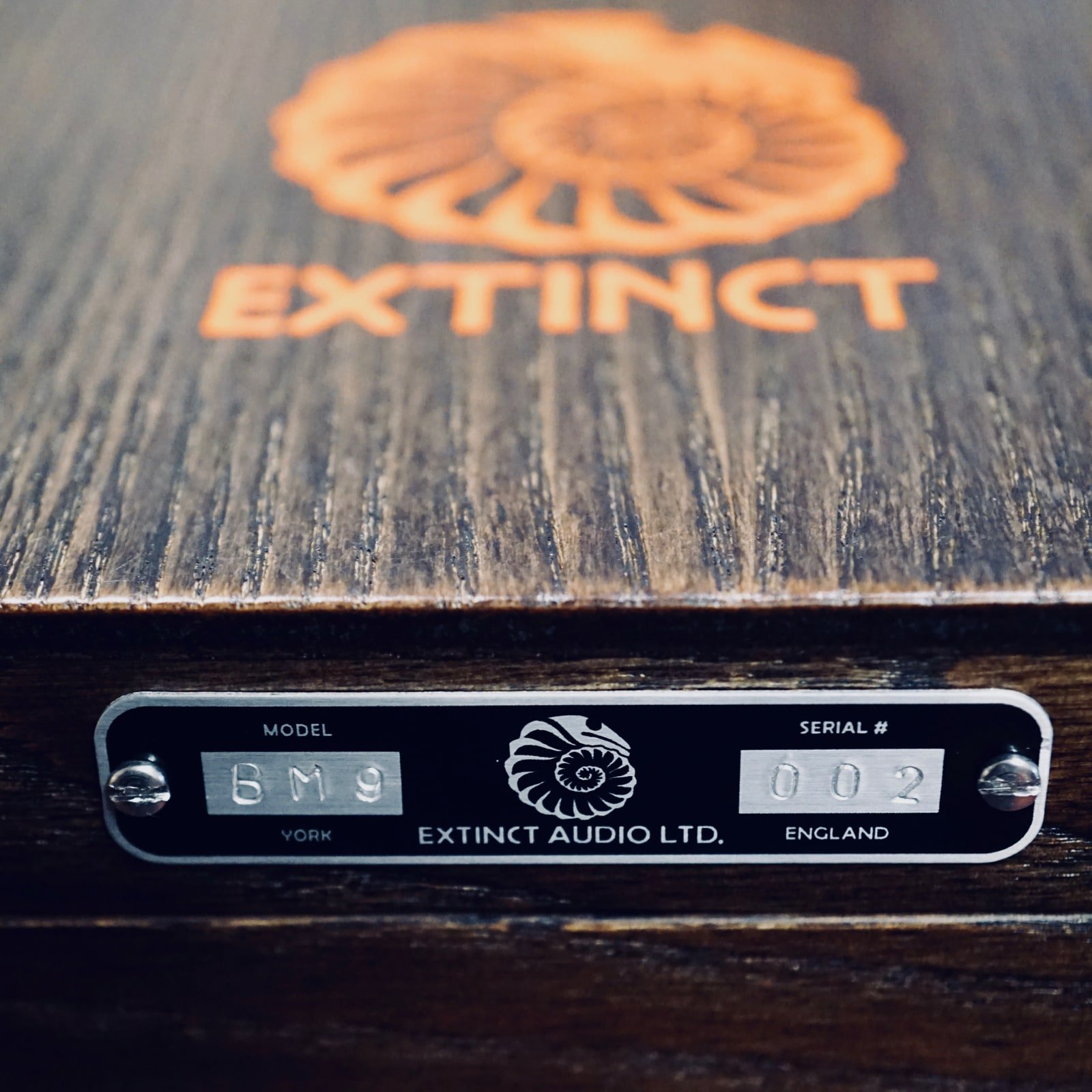

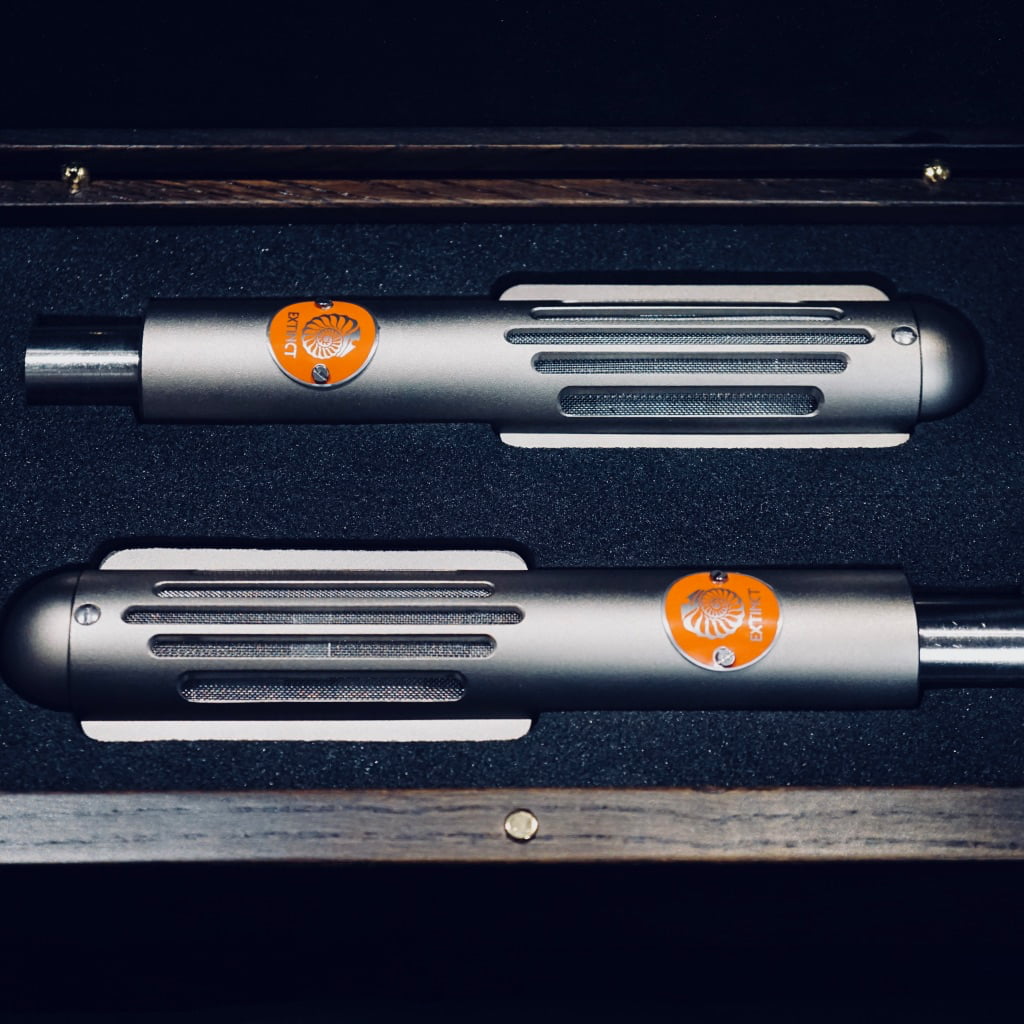

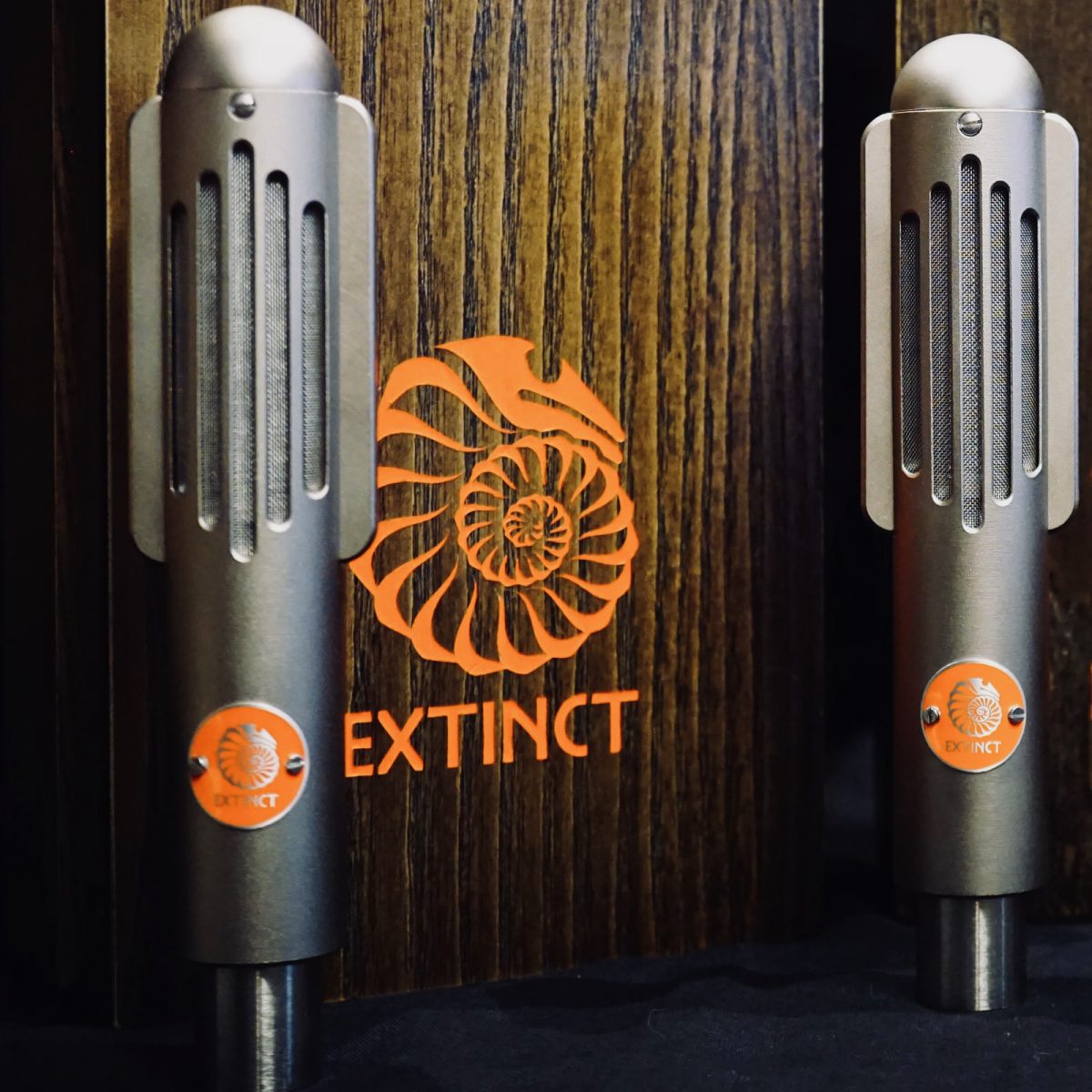

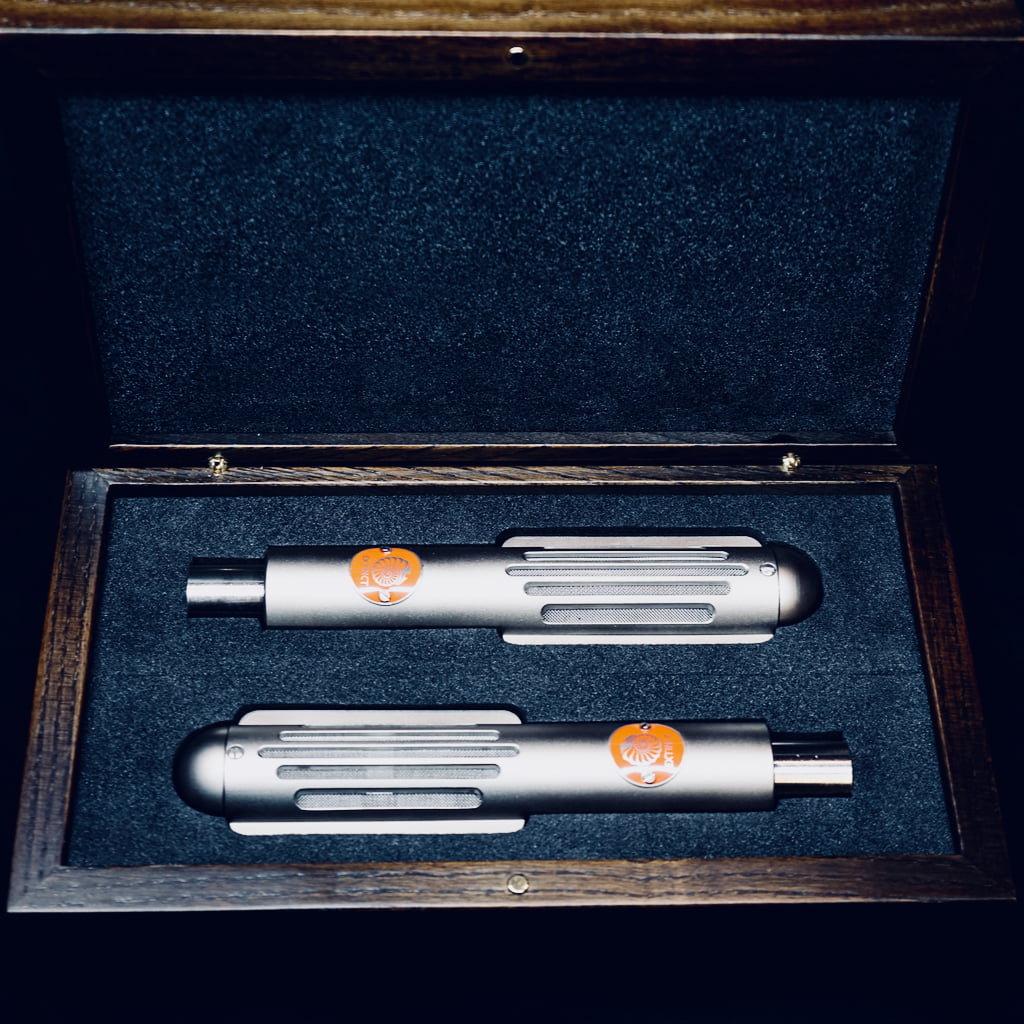

The BM9 pair  supplied in a solid wood box, with hardtail mounts.

Mechanical parts carry a lifetime warranty to the original owner. Ribbons are warrantied for 1 year from date of purchase, but with care should last many years.

Technical specifications

  • Output impedance = 300 ohms at 1KHz
  • Directional Pattern: True figure-8. View BM9 polar pattern chart
  • Transducer Element: 1.8 micrometer aluminum ribbon
  • Frequency range*: <30 Hz – 15 kHz @ ±3dB. (excludes proximity effect)
  • View BM9 frequency response chart
  • Maximum SPL: 135dB @ 20 Hz
  • Sensitivity: 3.5 mV/Pa, -49 dBv/Pa (referenced to AEA R84)
  • Self noise (thermal): -130 dBV at 20ºC (20 kHz bandwidth)
  • Signal to noise (1kHz at 1 Pa): 81 dB.
  • Proximity effect: Strong
  • Electronics: Passive. No power required
  • Output configuration: Transformer balanced
  • Output Connector: XLR3, Pin 2= +ve, Pin 3 = -ve, Pin 1 = Ground
  • Weight: 355g (per microphone)

*We use transformer laminations from Germany and bobbins from the USA.

Additional information

Weight 2 kg
Dimensions 25 × 15 × 10 cm

2 reviews for Extinct Audio BM9 Studio Ribbon Microphones – Matched Stereo Pair

  1. Martin Mitchell

    Buying a Stereo pair was inevitable!

    …a superb, hand built, ribbon microphone, in the finest tradition of Yorkshire craftsmanship and engineering. It produces an extraordinary level of fine detail. The low end is rich and full. It is a joy to work with…. I still can’t help going ‘Oooo shiny’ every time I open the lid of the box!

    Read the full review of the BM9 at Martin Mitchell’s microphone blog.

  2. Innovation Station Music

    I must spread the good word about these newly released ribbon mics — just got a matched pair of the Extinct Audio BM9s (nicknamed “The Viking”) -direct from the UK. They absolutely SLAY on piano – seemingly adding 2 feet (and a suboctave) to my Baldwin Grand. Huge but tight bass, with a clear and extended top end…not honky or nasal in the mids. Low noise (even through a 1073 with no Cloudlifter!), with lots of headroom. Can’t wait to try these on drums. These will deliver a big, warm, vintage-y sound on pretty much everything I throw at them. Oh, forgot to mention the cool retro design and gorgeous presentation in solid wood box with personal thank you note from Extinct Audio.
    Dave, Innovation Station Music, Annadale, Virginia, USA
    http://www.innovationstationmusic.com
